50W SPDT, Reflective DC to 4500 MHz Maximum Ratings Features
• automated switching networks
• transmitters/receivers
• high isolation, 65 dB typ. at 1 GHz
• low insertion loss, 0.7 dB typ.
• integralTTL driver

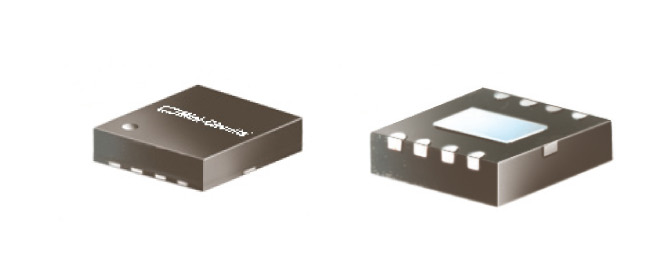

• miniature case style DL805
Applications
OperatingTemperature -55°C to 100°C
StorageTemperature -55°C to 100°C
SupplyV, Input Power see Note 1
