50Ω 32W 500 to 1000 MHz • saturated power 32W typ.
• high power with low distortion,-45 dBc typ.
• wide bandwidth, usable 475 to 1050 MHz
• high gain, 47 dB typ.
• unconditionally stable
• self protected against excessive drive, high case temp., reverse
• polarity and shorting/unshorting transients at dc input
• electronic shutoff by grounding the shut-off terminal, reduces output by 50 dB
• ungrounding the shutoff terminal restores full power within 40 ms

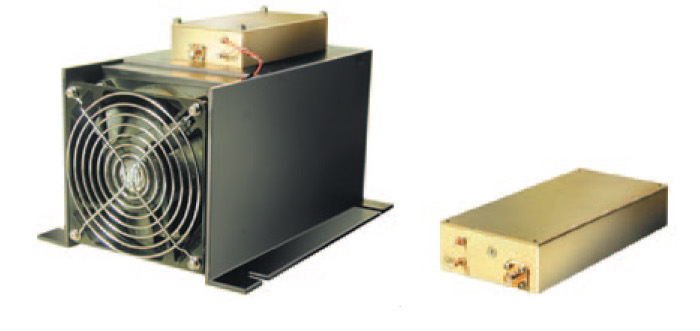

• cool operation with integral fan, 15° C typ. rise
• graceful degradation, +20 to +30V DC
• can withstand short and open circuit at output for 2 minutes while delivering 20 watts Applications
• AM/FM • Linear Pulse
• Multi-carrier amplification • Feed forward
• Broadband swept signal
